Brass Flow Regulators

Brass Flow Regulators pair with manifolds or stand-alone for robust, leak-free operation. Many sizes and options are available.

Smartflow Brass Flow Regulators provide unique, leak-free, single-point manual flow controls These regulators incorporate the proven IceCube™ flowmeter and integral needle valve in a compact design. Minimal moving parts improve reliability and leak-free operation. Used singly or in combination with a water manifold, brass flow regulators allow manual control of individual cooling water lines.

3/4″ and 1″ Brass Flow Regulators provide robust manual flow control with minimal pressure drop. Flow scales are not included with 1″ units. Flowmeters may be added. Contact the factory for details.

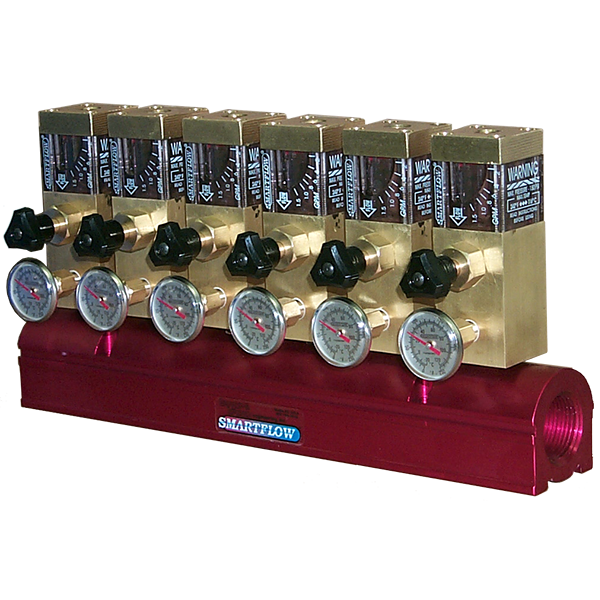

Flow regulators work together on a manifold to equalize the Reynolds Numbers of circuits with different flow path obstacles. See the YouTube Animation: Balance and Optimize Mold Cooling.

Product Overview

Features and Benefits

  • Compact size well-suited to small locations
  • Rugged construction provides years of dependable service
  • 210°F (99°C) temperature rating allows installation into a wide range of applications.
  • No mounting restrictions ease installation in any position.
  • Manually control multiple cooling zones on a single tool with installation on a return manifold.

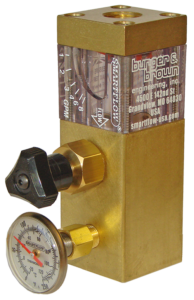

Smartflow Brass Flow Regulator with Temperature Gauge

Downloads

Mechanical Flow Regulators Catalog

Mechanical Flow Regulators Catalog (Español)

1″ Brass Flow Regulator Catalog

1″ Brass Flow Regulator Catalog (Español)

Sizes

Small Flow Regulators:

  • 1/4″ to 1/2″ inlet size, 3/8″ outlet
  • Integral flow scale
  • Optional temperature gauge

Large Flow Regulators:

  • 3/4″ or 1″ NPT inlet and outlet
  • Add a mechanical flowmeter with temperature and/or pressure gauges (3/4″ only)

Use the ManifoldBuilder to design your flow regulator and gauge combination:
